D21系列 LED 背光驅動板
D21系列是一款（升壓/定電流）LED背光驅動板 支援:軍用顯示器,船用顯示器,工業用顯示器,廣告機顯示器,KIOSK,NEC,Mitsubishi.

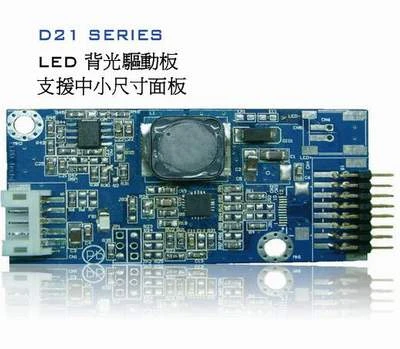

LED driver board D21 系列支援中小尺寸面板 (升壓_定電流)
The D21 series is a high voltage Boost driver with 1~8 channels(option) adjustable constant current regulators for LED backlight applications.one to eight regulated current ports are designed to provide uniform and pure DC constant current sinks for driving LEDs within a large range VF variations. It can drive a number of LEDs in series/parallel configuration.
It could output the lowest dropout voltage among used channels to Boost Driver in order to maintain the output voltage in optimal level. An OVP circuit is built for open-loop protection when any string becomes open.
The built in DC to PWM (Pulse Width Modulation) module signal for the dimming control function allows users to set LED brightness smoothly.

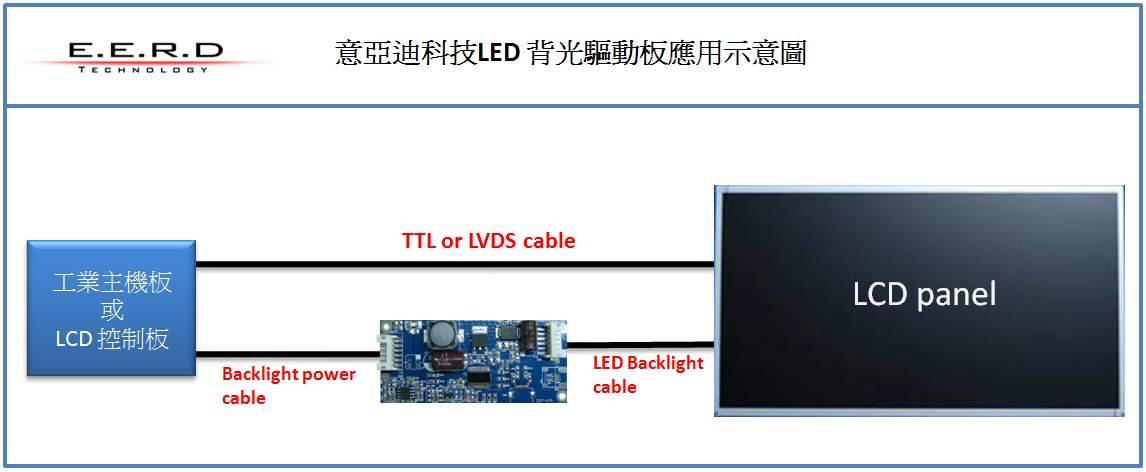

LED Backlight Drive

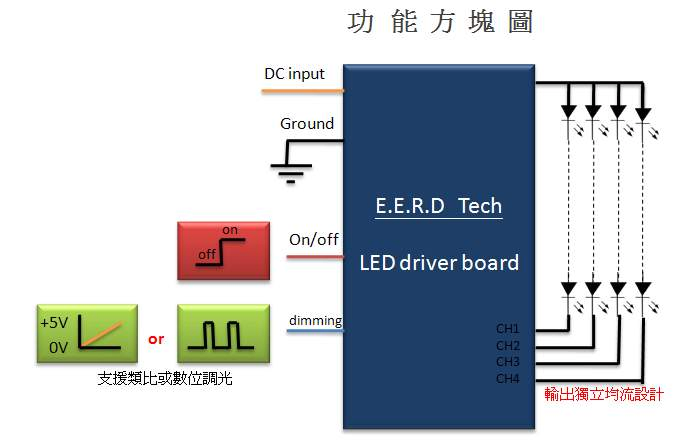

LED_converter_board功能方塊圖
